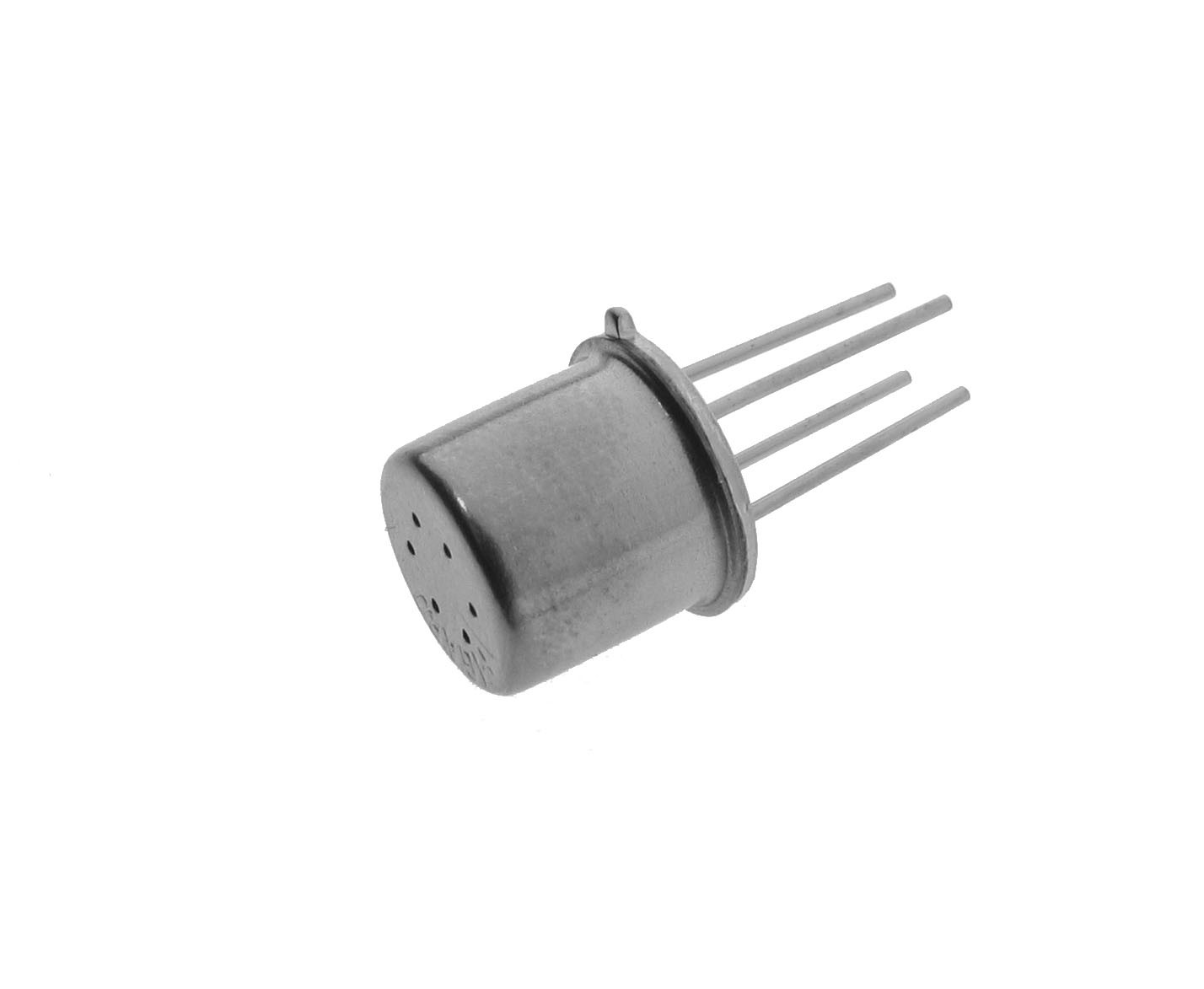

2N3439

Symbol Micros: T2N3439

6239

T2N3439

Contractor Symbol:

Case : TO 39

Datasheet

Technical drawing Add to favourites

NPN 1A 350V 10W 15MHz

Parameters

Power dissipation:	1W
Cutoff frequency:	15MHz
Current gain factor:	160
Manufacturer:	CDIL
Case:	TO 39
Max. collector current:	1A
Max collector-emmiter voltage:	350V

All parameters

Manufacturer:: CDIL Manufacturer part number: 2N3439 RoHS Case style: TO 39 Datasheet

In stock:

480 pcs.

Quantity of pcs.	2+	10+	50+	200+	500+
Net price (EUR)	0,7210	0,4541	0,3558	0,3230	0,3137

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: Central Semiconductor Manufacturer part number: 2N3439 PBFREE Case style: TO 39

External warehouse:

12999 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,1594

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Power dissipation:	1W
Cutoff frequency:	15MHz
Current gain factor:	160
Manufacturer:	CDIL
Case:	TO 39
Max. collector current:	1A
Max collector-emmiter voltage:	350V
Operating temperature (range):	-65°C ~ 200°C
Transistor type:	NPN
