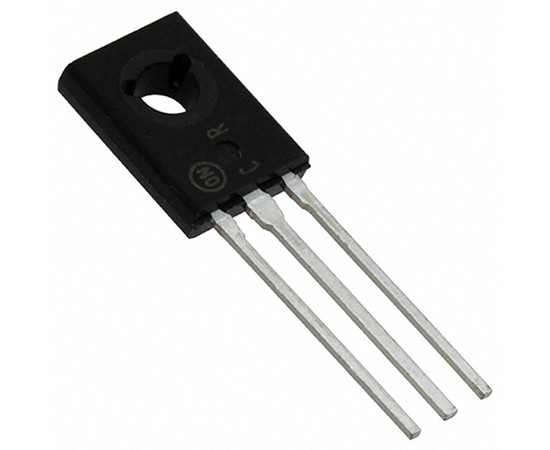

2N5192

Symbol Micros: T2N5192

109638

T2N5192

Contractor Symbol:

Case : TO225 (=TO126-3)

Datasheet

Technical drawing Add to favourites

NPN 80V 4A 40W 2N5192G

Parameters

Manufacturer:	STMicroelectronics
Power dissipation:	40W
Current gain factor:	80
Case:	TO225 (=TO126-3)
Max. collector current:	4A
Max collector-emmiter voltage:	80V
Operating temperature (range):	-65°C ~ 150°C

All parameters

Manufacturer:: ST Manufacturer part number: 2N5192 RoHS Case style: TO225 (=TO126-3) Datasheet

In stock:

150 pcs.

Quantity of pcs.	3+	10+	50+	200+	1000+
Net price (EUR)	0,3375	0,2212	0,1586	0,1387	0,1299

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

Manufacturer:: ON-Semiconductor Manufacturer part number: 2N5192G Case style: TO225 (=TO126-3)

External warehouse:

2000 pcs.

Quantity of pcs.	500+ (Please wait for the order confirmation)
Net price (EUR)	0,3462

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Manufacturer:	STMicroelectronics
Power dissipation:	40W
Current gain factor:	80
Case:	TO225 (=TO126-3)
Max. collector current:	4A
Max collector-emmiter voltage:	80V
Operating temperature (range):	-65°C ~ 150°C
Transistor type:	NPN
