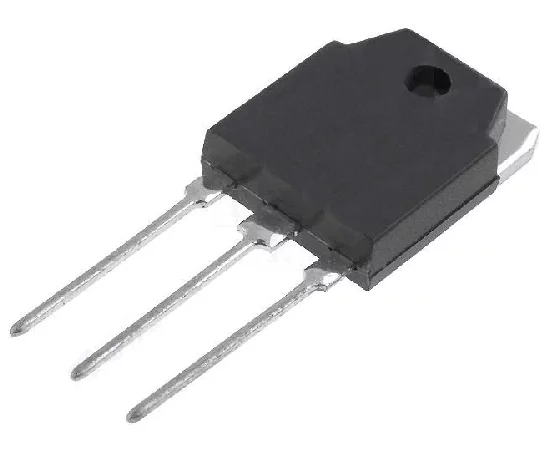

2SA1693-Y

Symbol Micros: T2SA1693

117647

T2SA1693

Contractor Symbol:

Case : TO3PFM

Datasheet

Add to favourites

PNP 80V 6A 60W 20MHz

Parameters

Power dissipation:	60W
Manufacturer:	Inchange Semiconductors
Current gain factor:	50
Case:	TO3PFM
Cutoff frequency:	20MHz
Max. collector current:	6A
Max collector-emmiter voltage:	80V

All parameters

Manufacturer:: INCHANGE SEMICONDUCTORS Co.Ltd Manufacturer part number: 2SA1693Y RoHS Case style: TO3PFM

In stock:

15 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,2309	0,9397	0,7776	0,6812	0,6484

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Power dissipation:	60W
Manufacturer:	Inchange Semiconductors
Current gain factor:	50
Case:	TO3PFM
Cutoff frequency:	20MHz
Max. collector current:	6A
Max collector-emmiter voltage:	80V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	PNP
