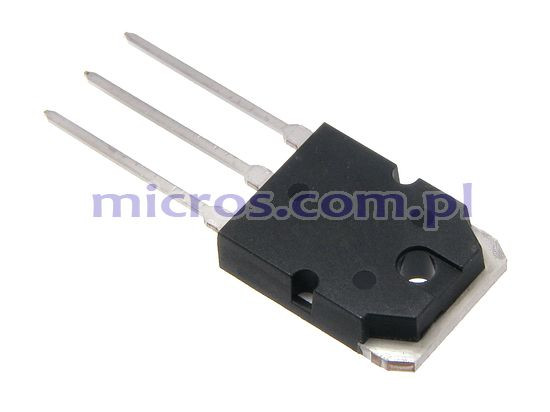

2SA1941-O

Symbol Micros: T2SA1941

63850

T2SA1941

Contractor Symbol:

Case : 2-16C1A

Datasheet

Technical drawing Add to favourites

PNP 140V 10A SET with 2SC5198-O

Parameters

Power dissipation:	100W
Current gain factor:	160
Cutoff frequency:	30MHz
Manufacturer:	TOSHIBA
Case:	2-16C1A
Max. collector current:	10A
Max collector-emmiter voltage:	140V

All parameters

Manufacturer:: Toshiba Manufacturer part number: 2SA1941-O RoHS Case style: 2-16C1A Datasheet

In stock:

150 pcs.

Quantity of pcs.	1+	5+	30+	150+	300+
Net price (EUR)	1,5860	1,1766	1,0035	0,9450	0,9333

Add to comparison tool Add inquiry (RFQ)

Packaging:
150 Quantity (multiple: 1)

- +

Manufacturer:: Toshiba Manufacturer part number: 2SA1941-O RoHS Case style: 2-16C1A Datasheet

In stock:

22 pcs.

Quantity of pcs.	1+	5+	30+	150+	300+
Net price (EUR)	1,5860	1,1766	1,0035	0,9450	0,9333

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/500/1000 Quantity (multiple: 1)

- +

• Parameters

Power dissipation:	100W
Current gain factor:	160
Cutoff frequency:	30MHz
Manufacturer:	TOSHIBA
Case:	2-16C1A
Max. collector current:	10A
Max collector-emmiter voltage:	140V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	PNP
