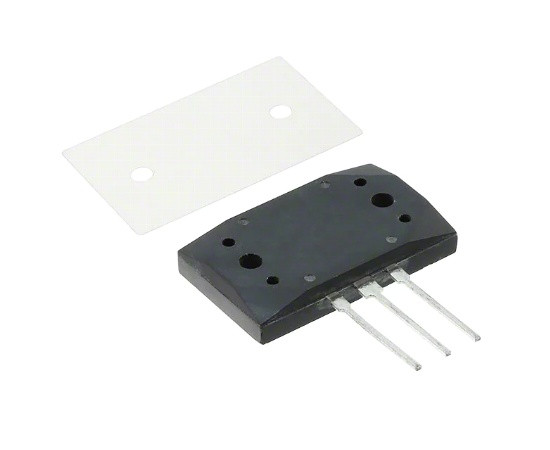

2SC3264 MT-200

Symbol Micros: T2SC3264

106026

T2SC3264

Contractor Symbol:

Case : MT-200

Datasheet

Technical drawing Add to favourites

NPN 230V 17A 200W 60MHz

Parameters

Power dissipation:	200W
Manufacturer:	Inchange Semiconductors
Current gain factor:	50
Case:	MT-200
Cutoff frequency:	60MHz
Max. collector current:	17A
Max collector-emmiter voltage:	230V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Power dissipation:	200W
Manufacturer:	Inchange Semiconductors
Current gain factor:	50
Case:	MT-200
Cutoff frequency:	60MHz
Max. collector current:	17A
Max collector-emmiter voltage:	230V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	NPN
