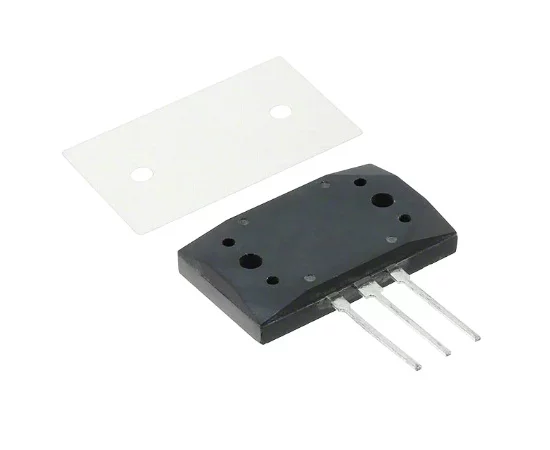

2SC3858  (komplet z 2SA1494)

Symbol Micros: T2SC3858

310809

T2SC3858

Contractor Symbol:

Case : MT-200

Datasheet

Technical drawing Add to favourites

2SA1494 Trans GP BJT PNP 200V 15A 3-Pin MT-200 2SC3858 Trans GP BJT NPN 200V 17A 3-Pin MT-200

Parameters

Power dissipation:	200W
Manufacturer:	Sanken
Current gain factor:	50
Cutoff frequency:	20MHz
Case:	MT-200
Max. collector current:	17A
Max collector-emmiter voltage:	200V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Power dissipation:	200W
Manufacturer:	Sanken
Current gain factor:	50
Cutoff frequency:	20MHz
Case:	MT-200
Max. collector current:	17A
Max collector-emmiter voltage:	200V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	NPN
