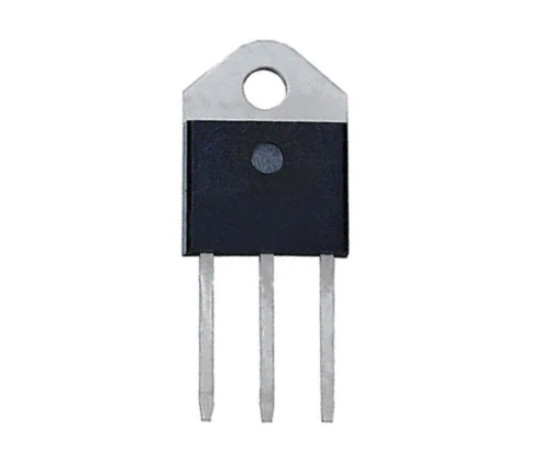

2SC4468 TO-3PN SPT

Symbol Micros: T2SC4468 SPT

396440

T2SC4468 SPT

Contractor Symbol:

Case : TO 3P

Technical drawing Add to favourites

Trans GP BJT NPN 140V 10A 3-Pin(3+Tab) TO-3P

Parameters

Power dissipation:	100W
Cutoff frequency:	20MHz
Manufacturer:	SPTECH
Case:	TO 3P
Max. collector current:	10A
Max collector-emmiter voltage:	140V
Operating temperature (range):	-55°C ~ 150°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Power dissipation:	100W
Cutoff frequency:	20MHz
Manufacturer:	SPTECH
Case:	TO 3P
Max. collector current:	10A
Max collector-emmiter voltage:	140V
Operating temperature (range):	-55°C ~ 150°C
Transistor type:	NPN
