BSC022N04LS6

Symbol Micros: TBSC022n04ls6

279756

TBSC022n04ls6

Contractor Symbol:

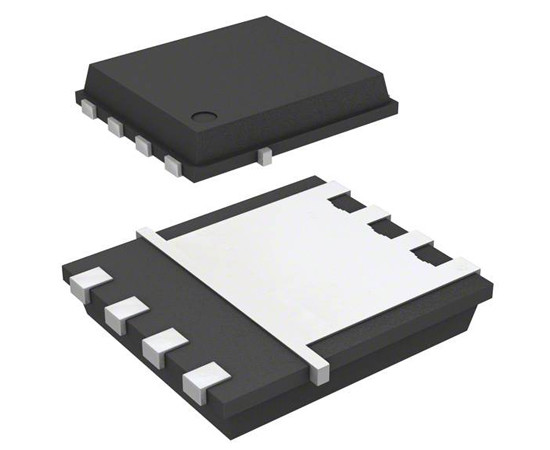

Case : TDSON08

Datasheet

Technical drawing Add to favourites

Trans MOSFET N-CH 40V 27A 8-Pin TDSON EP OptiMOS 6 BSC022N04LS6ATMA1

Parameters

Open channel resistance:	3,2mOhm
Max. drain current:	139A
Max. power loss:	79W
Case:	TDSON08
Manufacturer:	Infineon Technologies
Max. drain-source voltage:	40V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: Infineon Manufacturer part number: BSC022N04LS6ATMA1 RoHS Case style: TDSON08 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,0236	2,4988	2,1891	2,0401	1,9503

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: Infineon Manufacturer part number: BSC022N04LS6ATMA1 Case style: TDSON08

External warehouse:

5000 pcs.

Quantity of pcs.	5000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,9503

Add to comparison tool Add inquiry (RFQ)

Packaging:
5000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Open channel resistance:	3,2mOhm
Max. drain current:	139A
Max. power loss:	79W
Case:	TDSON08
Manufacturer:	Infineon Technologies
Max. drain-source voltage:	40V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
