BSC027N10NS5

Symbol Micros: TBSC027n10ns5

279759

TBSC027n10ns5

Contractor Symbol:

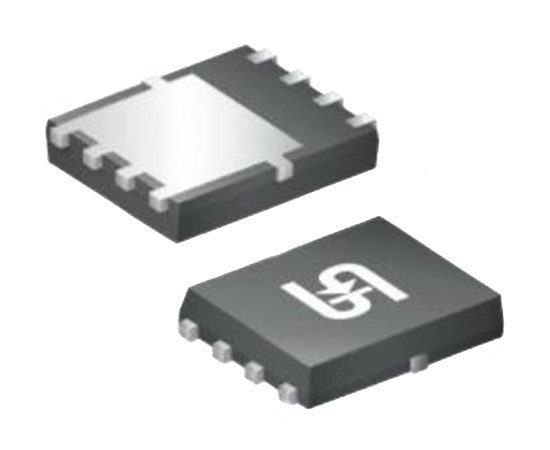

Case : PowerTDFN8(5x6)

Datasheet

Add to favourites

Trans MOSFET N-CH 100V 23A 8-Pin TSON EP BSC027N10NS5ATMA1

Parameters

Open channel resistance:	2,7mOhm
Max. drain current:	23A
Max. power loss:	3W
Case:	PowerTDFN8(5x6)
Manufacturer:	INFINEON
Max. drain-source voltage:	100V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	2,7mOhm
Max. drain current:	23A
Max. power loss:	3W
Case:	PowerTDFN8(5x6)
Manufacturer:	INFINEON
Max. drain-source voltage:	100V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
