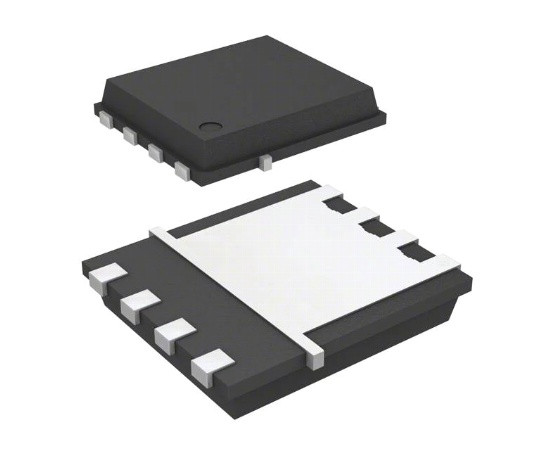

BSC040N08NS5ATMA1 INFINEON

Symbol Micros: TBSC040n08ns5

194750

TBSC040n08ns5

Contractor Symbol:

Case : TDSON-8

Datasheet

Add to favourites

Trans MOSFET N-CH 80V 100A Automotive 8-Pin TDSON EP

Parameters

Open channel resistance:	5,7mOhm
Max. drain current:	100A
Max. power loss:	104W
Case:	TDSON-8
Manufacturer:	Infineon Technologies
Max. drain-source voltage:	80V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: Infineon Manufacturer part number: BSC040N08NS5ATMA1 RoHS Case style: TDSON-8 Datasheet

In stock:

200 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,1412	0,7995	0,6785	0,6216	0,6003

Add to comparison tool Add inquiry (RFQ)

Packaging:
2300 Quantity (multiple: 1)

- +

Manufacturer:: Infineon Manufacturer part number: BSC040N08NS5ATMA1 Case style: TDSON-8

External warehouse:

50000 pcs.

Quantity of pcs.	5000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,6106

Add to comparison tool Add inquiry (RFQ)

Packaging:
5000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Open channel resistance:	5,7mOhm
Max. drain current:	100A
Max. power loss:	104W
Case:	TDSON-8
Manufacturer:	Infineon Technologies
Max. drain-source voltage:	80V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
