BTS452R

Symbol Micros: TBTS452r

108364

TBTS452r

Contractor Symbol:

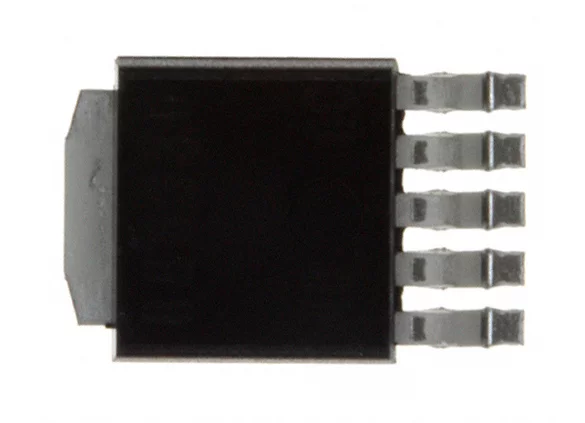

Case : TO252/5

Datasheet

Technical drawing Add to favourites

High-Side Power Switch, Vbb 6÷52V, IL 1.8A, Ron 150mΩ BTS452RAKSA1 BTS452RNONDRY SP000506224 BTS452RATMA1; BTS452RAKSA1;

Parameters

Drain resistance (Rds on):	0,2 Ohm
Input voltage range:	6V~52V
Turn on time:	180us
Manufacturer:	INFINEON
Operating temperature (range):	-40°C ~ 150°C

All parameters

Manufacturer:: Infineon Manufacturer part number: BTS452RATMA1 Case style: TO252/5

External warehouse:

82500 pcs.

Quantity of pcs.	2500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,9682

Add inquiry (RFQ)

Packaging:
2500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Infineon Manufacturer part number: BTS452RATMA1 Case style: TO252/5

External warehouse:

45000 pcs.

Quantity of pcs.	2500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0194

Add to comparison tool Add inquiry (RFQ)

Packaging:
2500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Drain resistance (Rds on):	0,2 Ohm
Input voltage range:	6V~52V
Turn on time:	180us
Manufacturer:	INFINEON
Operating temperature (range):	-40°C ~ 150°C
