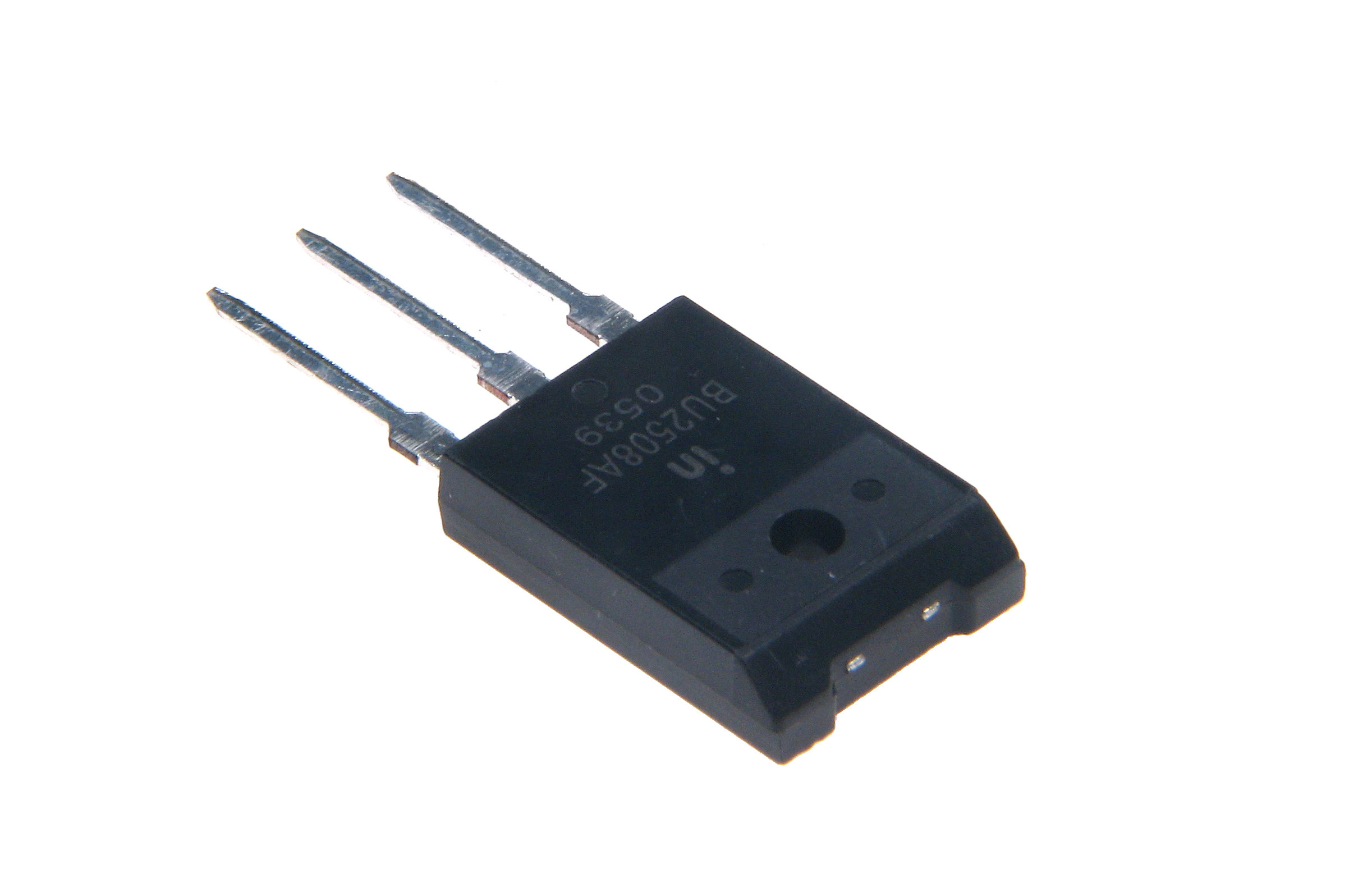

BU2508AF iso

Symbol Micros: TBU2508af

11187

TBU2508af

Contractor Symbol:

Case : TO 3Piso (SOT199)

Datasheet

Technical drawing Add to favourites

NPN 8A 700V 45W

Parameters

Power dissipation:	45W
Current gain factor:	13
Case:	TO 3Piso (SOT199)
Max. collector current:	8A
Max collector-emmiter voltage:	700V
Operating temperature (range):	-65°C ~ 150°C
Transistor type:	NPN

All parameters

Manufacturer:: NXP Manufacturer part number: BU2508AF RoHS Case style: TO 3Piso (SOT199)

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,6645	1,1654	0,9911	0,9064	0,8758

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Power dissipation:	45W
Current gain factor:	13
Case:	TO 3Piso (SOT199)
Max. collector current:	8A
Max collector-emmiter voltage:	700V
Operating temperature (range):	-65°C ~ 150°C
Transistor type:	NPN
