CSD17313Q2

Symbol Micros: TCSD17313q2

207529

TCSD17313q2

Contractor Symbol:

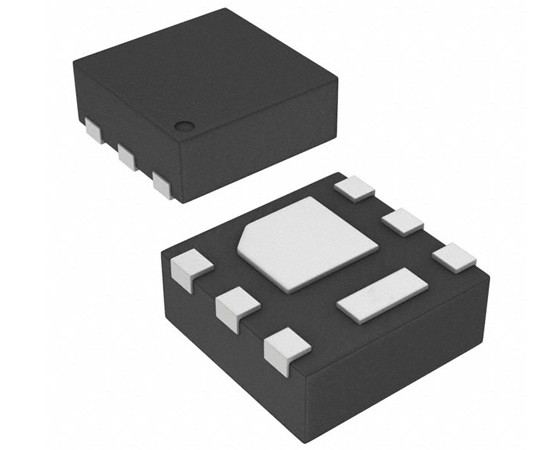

Case : WSON06(2x2)

Datasheet

Add to favourites

Transistor N-Channel MOSFET; 30V; 10V; 42mOhm; 19A; 17W; -55°C ~ 150°C; CSD17313Q2T

Parameters

Open channel resistance:	42mOhm
Max. drain current:	19A
Max. power loss:	17W
Case:	WSON06(2x2)
Manufacturer:	Texas Instruments
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: CSD17313Q2 RoHS Case style: WSON06(2x2) Datasheet

In stock:

50 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,6246	0,3960	0,3111	0,2829	0,2711

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	42mOhm
Max. drain current:	19A
Max. power loss:	17W
Case:	WSON06(2x2)
Manufacturer:	Texas Instruments
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	10V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
