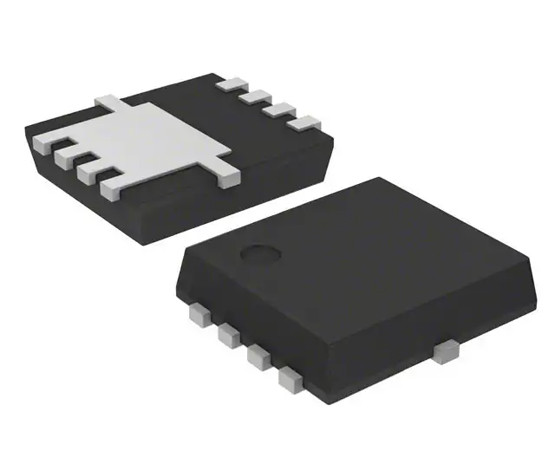

CSD17581Q3A

Symbol Micros: TCSD17581q3a

207564

TCSD17581q3a

Contractor Symbol:

Case : VSONP08(3.3x3.3)

Datasheet

Add to favourites

Transistor N-Channel MOSFET; 30V; 20V; 4,7mOhm; 101A; 63W; -55°C ~ 150°C; CSD17581Q3AT

Parameters

Open channel resistance:	4,7mOhm
Max. drain current:	101A
Max. power loss:	63W
Case:	VSONP08(3.3x3.3)
Manufacturer:	Texas Instruments
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: CSD17581Q3A RoHS Case style: VSONP08(3.3x3.3) Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,1917	0,8345	0,7099	0,6488	0,6276

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	4,7mOhm
Max. drain current:	101A
Max. power loss:	63W
Case:	VSONP08(3.3x3.3)
Manufacturer:	Texas Instruments
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
