CSD18540Q5B

Symbol Micros: TCSD18540q5b

207595

TCSD18540q5b

Contractor Symbol:

Case : VSON-CLIP08B(6x5)

Datasheet

Technical drawing Add to favourites

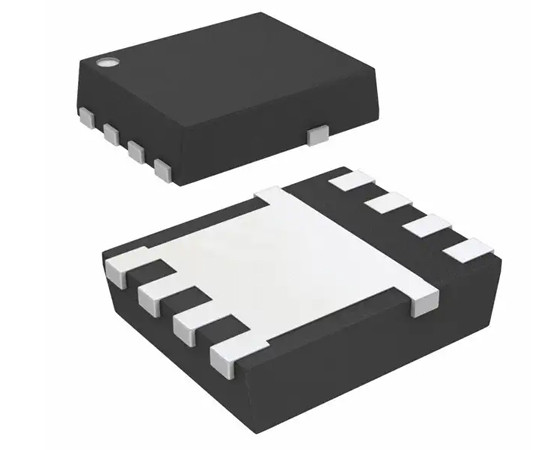

Transistor N-Channel MOSFET; 60V; 20V; 3.3mOhm; 100A; 188W; -55°C ~ 175°C; CSD18540Q5BT

Parameters

Open channel resistance:	3,3mOhm
Max. drain current:	100A
Max. power loss:	188W
Case:	VSON-CLIP08B(6x5)
Manufacturer:	Texas Instruments
Max. drain-source voltage:	60V
Max. gate-source Voltage:	20V

All parameters

Manufacturer:: Texas Instruments Manufacturer part number: CSD18540Q5B RoHS Case style: VSON-CLIP08B(6x5) Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	2,4715	2,1367	1,9385	1,8132	1,7654

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	3,3mOhm
Max. drain current:	100A
Max. power loss:	188W
Case:	VSON-CLIP08B(6x5)
Manufacturer:	Texas Instruments
Max. drain-source voltage:	60V
Max. gate-source Voltage:	20V
Transistor type:	N-MOSFET
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
