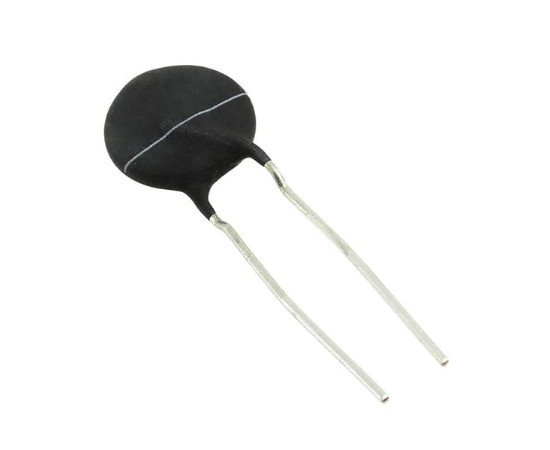

B57236S0500M000 TDK Thermistor

Symbol Micros: TE B57236S0500M000

208184

TE B57236S0500M000

Contractor Symbol:

Case : Rys.B57236

Datasheet

Technical drawing Add to favourites

Thermistor NTC; 50R; 20%; 2,1W; 1.9A; B=3165K; PCB; r=5mm; operating temperature: -55°C~170°C

Parameters

Material constant B:	3165K
Resistance:	50 Ohm
Power:	2,1W
Current:	1,9A
Operating temperature (range):	-55°C ~ 170°C
Tolerance [%]:	20%
Manufacturer:	TDK

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Material constant B:	3165K
Resistance:	50 Ohm
Power:	2,1W
Current:	1,9A
Operating temperature (range):	-55°C ~ 170°C
Tolerance [%]:	20%
Manufacturer:	TDK
Terminal pitch:	5mm
Mounting:	THT
