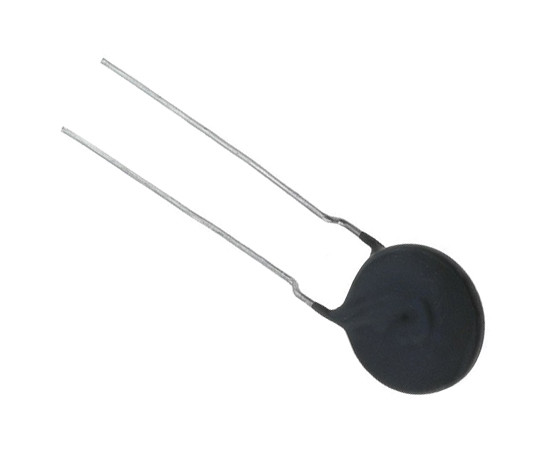

B57237S0229M000 TDK Thermistor

Symbol Micros: TE B57237S0229M

118981

TE B57237S0229M

Contractor Symbol:

Case : Rys.B57237SxxxxM000

Datasheet

Technical drawing Add to favourites

Thermistor NTC; 2.2R; 20%; 3,1W; 7A; B=2800K; r=7,5mm operating temperature: -55°C~170°C

Parameters

Material constant B:	2800K
Resistance:	2,2 Ohm
Current:	7A
Power:	3,1W
Operating temperature (range):	-55°C ~ 170°C
Tolerance [%]:	20%
Manufacturer:	TDK

All parameters

Manufacturer:: TDK Manufacturer part number: B57237S0229M000 RoHS Case style: Rys.B57237SxxxxM000

In stock:

84 pcs.

Quantity of pcs.	1+	8+	40+	100+	400+
Net price (EUR)	0,9544	0,5850	0,4950	0,4713	0,4547

Add to comparison tool Add inquiry (RFQ)

Packaging:
8/100 Quantity (multiple: 1)

- +

Manufacturer:: TDK Manufacturer part number: B57237S0229M000 Case style: Rys.B57237SxxxxM000

External warehouse:

10000 pcs.

Quantity of pcs.	500+ (Please wait for the order confirmation)
Net price (EUR)	0,5728

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Material constant B:	2800K
Resistance:	2,2 Ohm
Current:	7A
Power:	3,1W
Operating temperature (range):	-55°C ~ 170°C
Tolerance [%]:	20%
Manufacturer:	TDK
Terminal pitch:	7,5mm
Mounting:	THT
