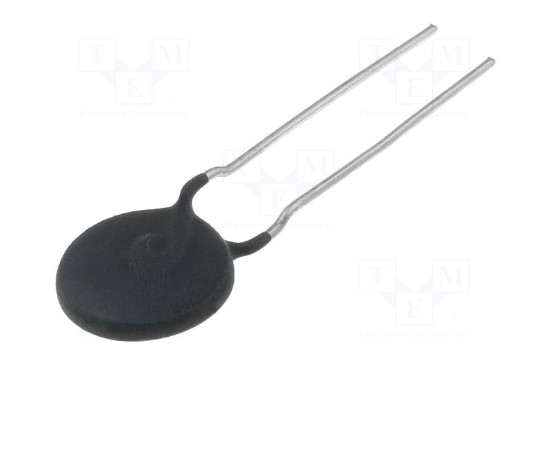

B57238S0100M000 TDK Thermistor

Symbol Micros: TE B57238S0100M000

208180

TE B57238S0100M000

Contractor Symbol:

Case : Rys.B57238

Datasheet

Technical drawing Add to favourites

Thermistor NTC; 10R; 20%; 3,9W; 5A; B=3065K; r=7,5mm operating temperature: -55°C~170°C

Parameters

Material constant B:	3056K
Resistance:	10 Ohm
Power:	3,9W
Current:	5A
Operating temperature (range):	-55°C ~ 170°C
Tolerance [%]:	20%
Manufacturer:	TDK

All parameters

Manufacturer:: TDK Manufacturer part number: B57238S0100M000 RoHS Case style: Rys.B57238 Datasheet

In stock:

100 pcs.

Quantity of pcs.	1+	5+	20+	100+	400+
Net price (EUR)	1,6254	1,1385	0,9669	0,8857	0,8556

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Material constant B:	3056K
Resistance:	10 Ohm
Power:	3,9W
Current:	5A
Operating temperature (range):	-55°C ~ 170°C
Tolerance [%]:	20%
Manufacturer:	TDK
Terminal pitch:	7,5mm
Mounting:	THT
