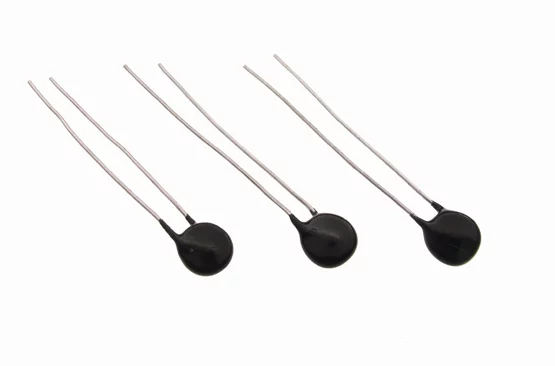

Thermistor NTC; 10kR

Symbol Micros: TE N05NK010.00f

500184

TE N05NK010.00f

Contractor Symbol:

Case : Rys.NTC05

Datasheet

Technical drawing Add to favourites

10kR(25°C); 1%; B=3486K; r=2,5mm; operating temperature: -55°C~125°C

Parameters

Material constant B:	3845K
Resistance:	10 kOhm
Operating temperature (range):	-55°C ~ 125°C
Tolerance [%]:	1%
Manufacturer:	N/A
Terminal pitch:	2,5mm
Mounting:	THT

All parameters

Manufacturer:: PASSIVE TECH Manufacturer part number:   Case style: Rys.NTC05

In stock:

2000 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,1925	0,0911	0,0509	0,0385	0,0350

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/2000 Quantity (multiple: 1)

- +

• Parameters

Material constant B:	3845K
Resistance:	10 kOhm
Operating temperature (range):	-55°C ~ 125°C
Tolerance [%]:	1%
Manufacturer:	N/A
Terminal pitch:	2,5mm
Mounting:	THT
