NTCS0603E3222FMT Vishay

Symbol Micros: TE N3SK002.2f VIS

296664

TE N3SK002.2f VIS

Contractor Symbol:

Case : Rys.NTCS0603

Datasheet

Technical drawing Add to favourites

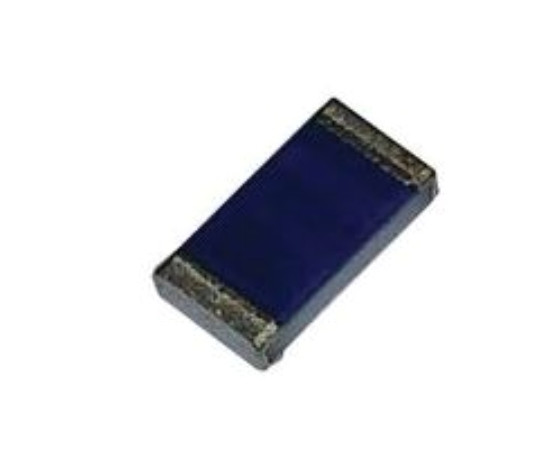

Thermistor NTC; 2.2kR; smd 0603; 1%; 125mW; B=3520K; operating temperature: -40°C~150°C

Parameters

Material constant B:	3520K
Resistance:	2,2 kOhm
Power:	125mW
Operating temperature (range):	-40°C ~ 150°C
Manufacturer:	VISHAY
Terminal pitch:	0
Tolerance:	1%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Material constant B:	3520K
Resistance:	2,2 kOhm
Power:	125mW
Operating temperature (range):	-40°C ~ 150°C
Manufacturer:	VISHAY
Terminal pitch:	0
Tolerance:	1%
Case:	0603 cal
Mounting:	SMD
