NTCS0603E3104HXT Vishay

Symbol Micros: TE N3SK100.0h VIS

296669

TE N3SK100.0h VIS

Contractor Symbol:

Case : Rys.NTCS0603

Datasheet

Technical drawing Add to favourites

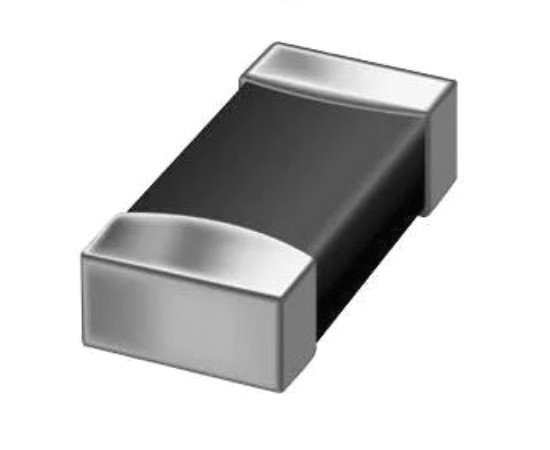

Thermistor NTC; 100kR; smd 0603; 3%; 125mW; B=4100K; operating temperature: -40°C~150°C

Parameters

Material constant B:	4100K
Resistance:	100 kOhm
Power:	125mW
Operating temperature (range):	-40°C ~ 150°C
Terminal pitch:	0
Manufacturer:	VISHAY
Tolerance:	3%

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Material constant B:	4100K
Resistance:	100 kOhm
Power:	125mW
Operating temperature (range):	-40°C ~ 150°C
Terminal pitch:	0
Manufacturer:	VISHAY
Tolerance:	3%
Case:	0603 cal
Mounting:	SMD
