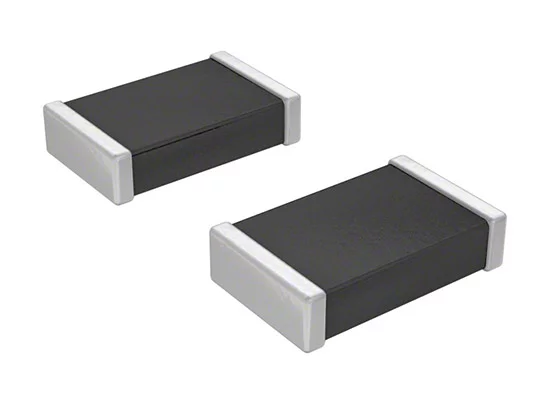

NTCS0805E3473JHT Vishay Thermistor

Symbol Micros: TE N5SK047.0j VIS

92467

TE N5SK047.0j VIS

Contractor Symbol:

Case : Rys.NTCS0805

Datasheet

Technical drawing Add to favourites

Thermistor NTC; 47kR; smd 0805; 5%; 210mW; B=3960K; operating temperature: -40°C~150°C

Parameters

Material constant B:	3960K
Resistance:	47 kOhm
Power:	210mW
Operating temperature (range):	-40°C ~ 150°C
Tolerance:	5%
Manufacturer:	VISHAY
Terminal pitch:	0

All parameters

Manufacturer:: Vishay Manufacturer part number: NTCS0805E3473JHT RoHS Case style: Rys.NTCS0805 Datasheet

In stock:

107 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3101	0,1710	0,1344	0,1245	0,1194

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
4000 Quantity (multiple: 1)

- +

• Parameters

Material constant B:	3960K
Resistance:	47 kOhm
Power:	210mW
Operating temperature (range):	-40°C ~ 150°C
Tolerance:	5%
Manufacturer:	VISHAY
Terminal pitch:	0
Case:	0805
Mounting:	SMD
