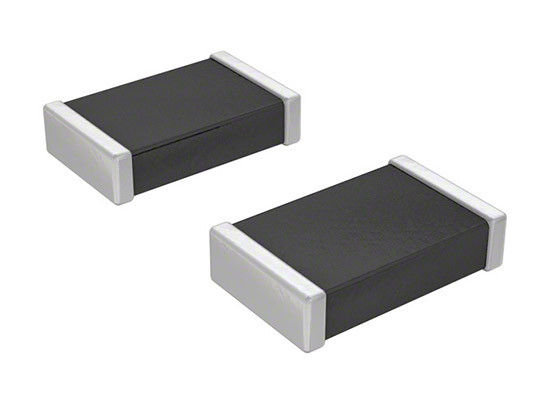

NTCS0805E3334JHT Vishay Thermistor

Symbol Micros: TE N5SK330.0j VIS

297132

TE N5SK330.0j VIS

Contractor Symbol:

Case : Rys.NTCS0805

Datasheet

Technical drawing Add to favourites

Thermistor NTC; 330kR; smd 0805; 5%; 210mW; B=3930K; operating temperature: -40°C~150°C

Parameters

Material constant B:	3930K
Resistance:	330 kOhm
Power:	210mW
Operating temperature (range):	-40°C ~ 150°C
Terminal pitch:	0
Tolerance:	5%
Manufacturer:	VISHAY

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Material constant B:	3930K
Resistance:	330 kOhm
Power:	210mW
Operating temperature (range):	-40°C ~ 150°C
Terminal pitch:	0
Tolerance:	5%
Manufacturer:	VISHAY
Case:	0805
Mounting:	SMD
