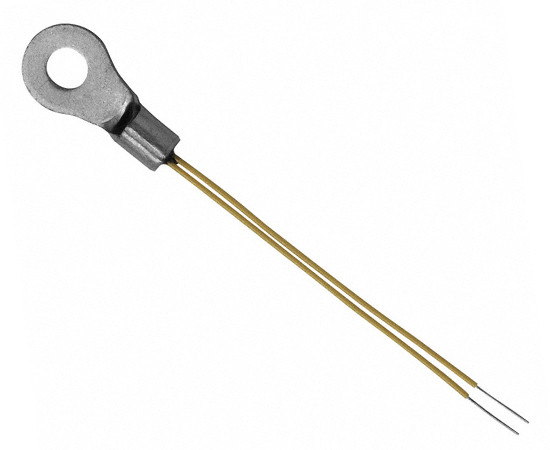

NTCALUG02A103F800 Vishay Thermistor

Symbol Micros: TE NTCALUG02A103F800

403276

TE NTCALUG02A103F800

Contractor Symbol:

Case : Rys.NTCALUG02A

Datasheet

Technical drawing Add to favourites

Thermistor NTC; 10kR; 1%; B=3984K; dimensions: 80x16,8mm; operating temperature: -55°C~125°C

Parameters

Material constant B:	3984K
Resistance:	10 kOhm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	1%
Manufacturer:	VISHAY

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Material constant B:	3984K
Resistance:	10 kOhm
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	1%
Manufacturer:	VISHAY
