NTCALUG03A103GC Vishay Thermistor

Symbol Micros: TE NTCALUG03A103GC

403269

TE NTCALUG03A103GC

Contractor Symbol:

Case : Rys.NTCALUG03AC

Datasheet

Technical drawing Add to favourites

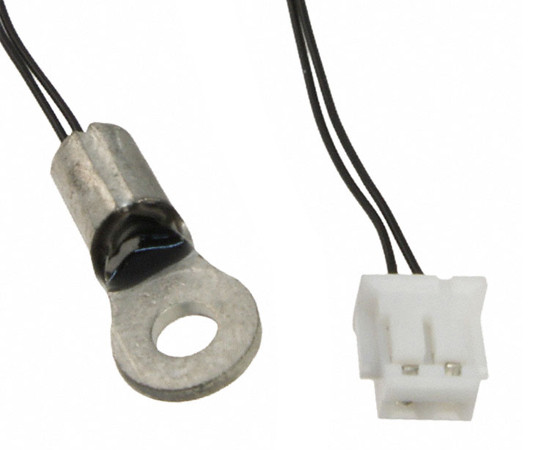

Thermistor NTC; 10kR; 2%; B=3984K; with connector; M2; dimensions: 70x11,5mm; operating temperature: -40°C~125°C

Parameters

Material constant B:	3984K
Resistance:	10 kOhm
Operating temperature (range):	-40°C ~ 125°C
Tolerance:	2%
Manufacturer:	VISHAY

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Material constant B:	3984K
Resistance:	10 kOhm
Operating temperature (range):	-40°C ~ 125°C
Tolerance:	2%
Manufacturer:	VISHAY
