Thermistor NTC; 100kR

Symbol Micros: TE NTCM-100K-B4250

296641

TE NTCM-100K-B4250

Contractor Symbol:

Case : Rys.NTCM-100KB

Datasheet

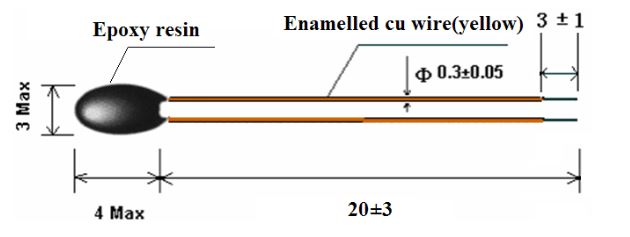

Technical drawing Add to favourites

100kR; 1%; 3,5mW; B=4250K; operating temperature: -55°C~125°C

Parameters

Material constant B:	4250K
Resistance:	100 kOhm
Power:	3,5mW
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	1%
Manufacturer:	N/A
Terminal pitch:	0

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Material constant B:	4250K
Resistance:	100 kOhm
Power:	3,5mW
Operating temperature (range):	-55°C ~ 125°C
Tolerance:	1%
Manufacturer:	N/A
Terminal pitch:	0
