Power NTC thermistor for surge current suppression; 100R

Symbol Micros: TE NTCS09N100.0

82882

TE NTCS09N100.0

Contractor Symbol:

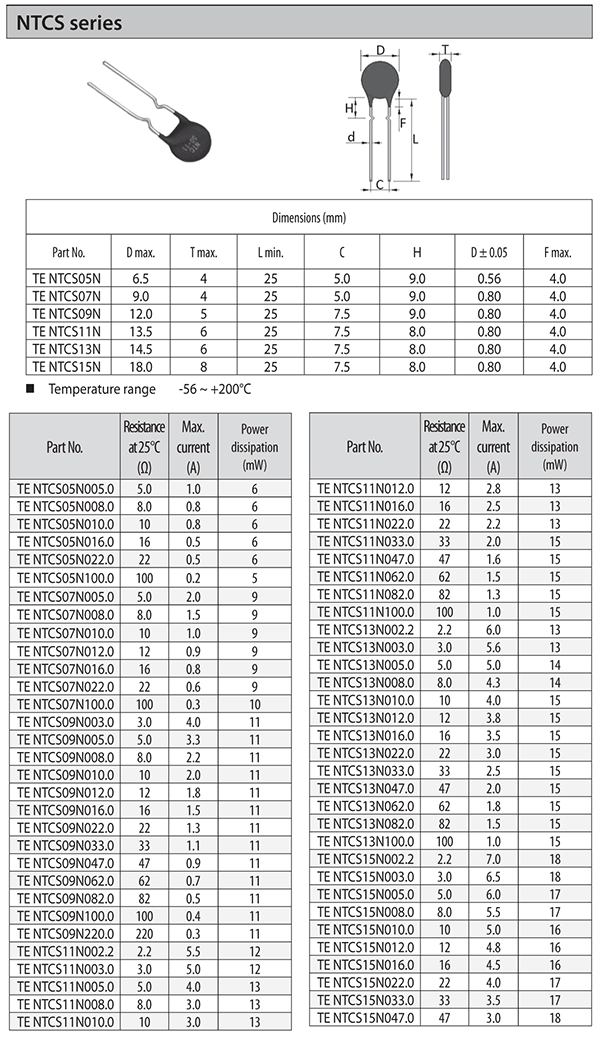

Case : Rys.NTCS09N

Datasheet

Technical drawing Add to favourites

100R(25°C); 11mW; Imax=0.4A; r=7.5mm; operating temperature: -56°C~200°C

Parameters

Resistance:	100 Ohm
Current:	0,4A
Power:	11mW
Operating temperature (range):	-56°C ~ 200°C
Terminal pitch:	7,5mm
Manufacturer:	N/A
Mounting:	THT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	100 Ohm
Current:	0,4A
Power:	11mW
Operating temperature (range):	-56°C ~ 200°C
Terminal pitch:	7,5mm
Manufacturer:	N/A
Mounting:	THT
