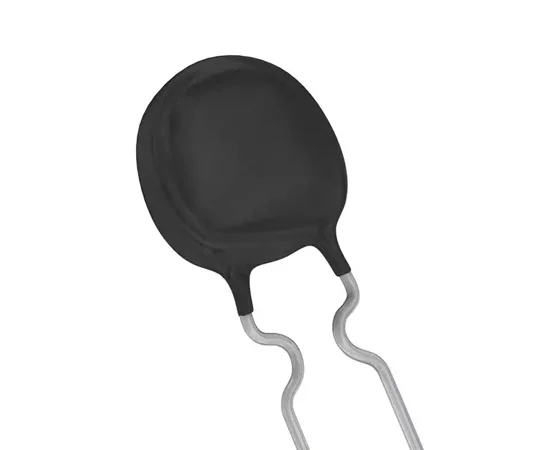

PTCCL05H271DBE Vishay Thermistor

Symbol Micros: TE PTCCL05H271DBE

346262

TE PTCCL05H271DBE

Contractor Symbol:

Case : Rys.PTCCL05HxxxDBE

Datasheet

Technical drawing Add to favourites

Thermistor PTC; 30V; 270mA; 6R; dimensions: 5x4mm; r=5mm; operating temperature: -40°C~85°C

Parameters

Resistance:	6 Ohm
Diameter:	5mm
Operating voltage:	30V
Thickness [m]:	4mm
Manufacturer:	VISHAY
Terminal pitch:	5mm
Operating temperature (range):	-40°C ~ 85°C

All parameters

Manufacturer:: Vishay Manufacturer part number: PTCCL05H271DBE RoHS Case style: Rys.PTCCL05HxxxDBE Datasheet

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,8726	0,5785	0,4790	0,4315	0,4149

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: Vishay Manufacturer part number: PTCCL05H271DBE Case style: Rys.PTCCL05HxxxDBE

External warehouse:

7700 pcs.

Quantity of pcs.	500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,4149

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Resistance:	6 Ohm
Diameter:	5mm
Operating voltage:	30V
Thickness [m]:	4mm
Manufacturer:	VISHAY
Terminal pitch:	5mm
Operating temperature (range):	-40°C ~ 85°C
