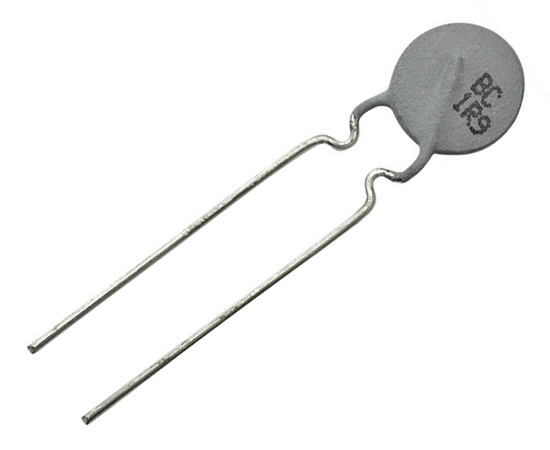

PTCCL07H411DBE Vishay Thermistor

Symbol Micros: TE PTCCL07H411DBE

410586

TE PTCCL07H411DBE

Contractor Symbol:

Case : Rys.PTCCL07HxxxDBE

Datasheet

Technical drawing Add to favourites

Thermistor PTC; 30V; 410mA; 3R; dimensions: 7x4mm; r=5mm; operating temperature: -40°C~85°C

Parameters

Resistance:	3 Ohm
Current:	0,41A
Diameter:	7mm
Operating voltage:	30V
Thickness [m]:	4mm
Terminal pitch:	5mm
Manufacturer:	VISHAY

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	3 Ohm
Current:	0,41A
Diameter:	7mm
Operating voltage:	30V
Thickness [m]:	4mm
Terminal pitch:	5mm
Manufacturer:	VISHAY
Operating temperature (range):	-40°C ~ 85°C
