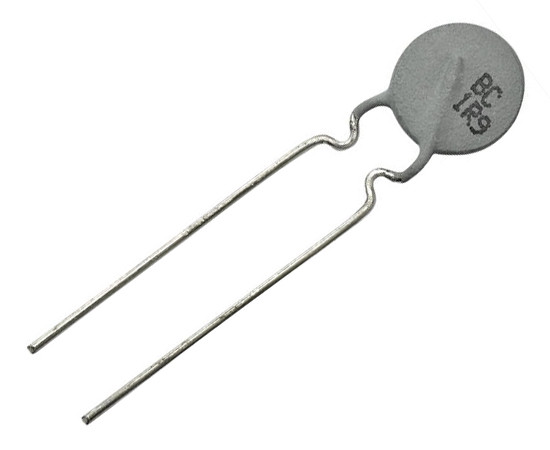

PTCCL09H541DTE Vishay Thermistor

Symbol Micros: TE PTCCL09H541DTE

410588

TE PTCCL09H541DTE

Contractor Symbol:

Case :

Datasheet

Technical drawing Add to favourites

Thermistor PTC; 30V; 540mA; 1,9R; dimensions: 8,5x4mm; r=5mm; operating temperature: -40°C~85°C

Parameters

Resistance:	1,9 Ohm
Current:	0,54A
Diameter:	8,5mm
Operating voltage:	30V
Thickness:	4mm
Manufacturer:	VISHAY
Terminal pitch:	5mm

All parameters

Manufacturer:: Vishay Manufacturer part number: PTCCL09H541DTE Case style: Rys.PTCCL09HxxxDTE

External warehouse:

1500 pcs.

Quantity of pcs.	1500+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,3588

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Resistance:	1,9 Ohm
Current:	0,54A
Diameter:	8,5mm
Operating voltage:	30V
Thickness:	4mm
Manufacturer:	VISHAY
Terminal pitch:	5mm
Operating temperature (range):	-40°C ~ 85°C
