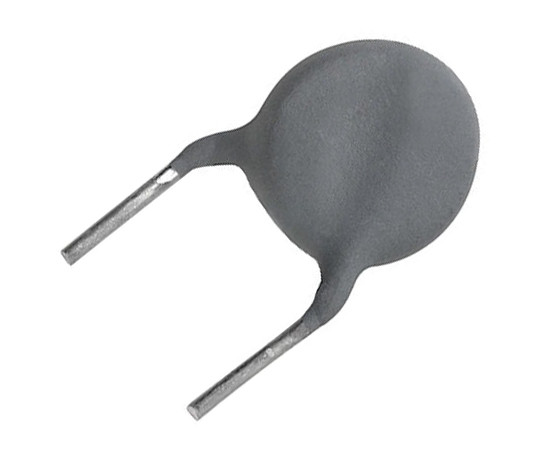

PTCCL10H010SBE Vishay Thermistor

Symbol Micros: TE PTCCL10H010SBE

410589

TE PTCCL10H010SBE

Contractor Symbol:

Case :

Datasheet

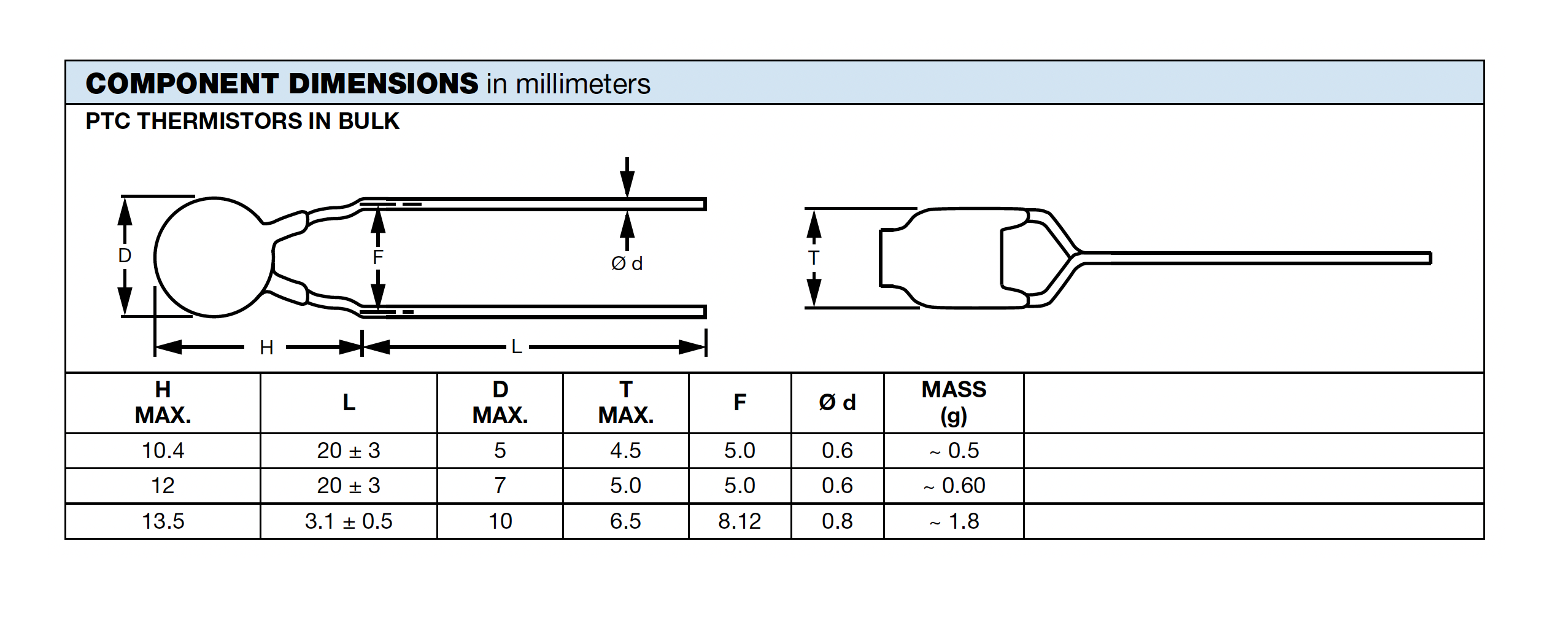

Technical drawing Add to favourites

Thermistor PTC; 600V; 10mA; 400R; dimensions: 10x6,5mm; r=8,12mm; operating temperature: -20°C~85°C

Parameters

Resistance:	400 Ohm
Current:	0,01A
Diameter:	10mm
Operating voltage:	600V
Thickness:	6,5mm
Manufacturer:	VISHAY
Terminal pitch:	8,12mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Resistance:	400 Ohm
Current:	0,01A
Diameter:	10mm
Operating voltage:	600V
Thickness:	6,5mm
Manufacturer:	VISHAY
Terminal pitch:	8,12mm
Operating temperature (range):	-40°C ~ 85°C
