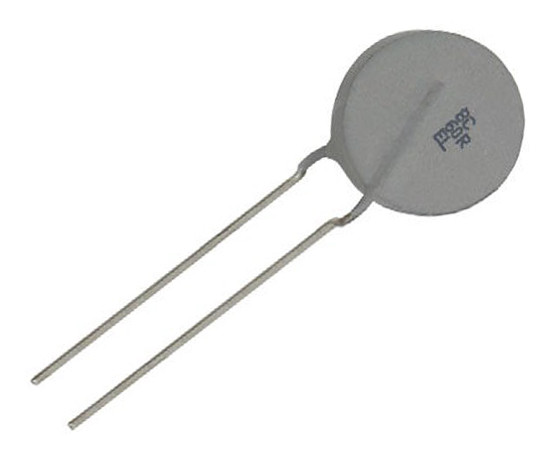

PTCEL17R501TBE Vishay Thermistor

Symbol Micros: TE PTCEL17R501TBE

410596

TE PTCEL17R501TBE

Contractor Symbol:

Case : Rys.PTCEL17RxxxTBE

Datasheet

Technical drawing Add to favourites

Thermistor PTC; 700V; 50mA; 500R; dimensions: 16,5x7,5mm; r=5mm; operating temperature: -40°C~105°C

Parameters

Resistance:	500 Ohm
Current:	0,05A
Diameter:	16,5mm
Operating voltage:	700V
Thickness:	7,5mm
Manufacturer:	VISHAY
Terminal pitch:	5mm

All parameters

Manufacturer:: Vishay Manufacturer part number: PTCEL17R501TBE Case style: Rys.PTCEL17RxxxTBE

External warehouse:

11800 pcs.

Quantity of pcs.	100+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,5315

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

Manufacturer:: Vishay Manufacturer part number: PTCEL17R501TBE Case style: Rys.PTCEL17RxxxTBE

External warehouse:

2298 pcs.

Quantity of pcs.	200+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	1,0913

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Resistance:	500 Ohm
Current:	0,05A
Diameter:	16,5mm
Operating voltage:	700V
Thickness:	7,5mm
Manufacturer:	VISHAY
Terminal pitch:	5mm
Operating temperature (range):	-40°C ~ 105°C
