FDY302NZ

Symbol Micros: TFDY302nz

122728

TFDY302nz

Contractor Symbol:

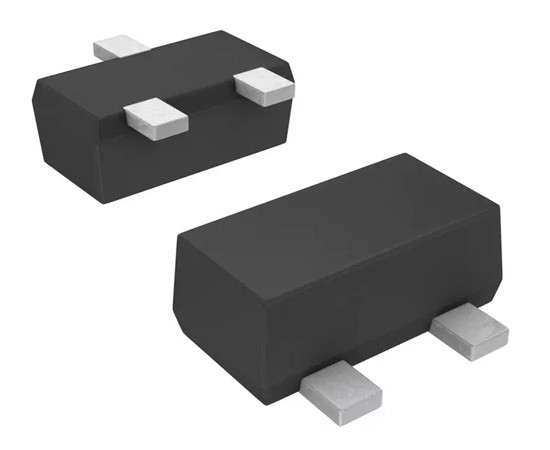

Case : SC89-3

Datasheet

Add to favourites

Trans MOSFET N-CH 20V 0.6A 3-Pin SC-89 T/R

Parameters

Open channel resistance:	300mOhm
Max. drain current:	600mA
Max. power loss:	625mW
Case:	SC89-3
Manufacturer:	Fairchild
Max. drain-source voltage:	20V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	300mOhm
Max. drain current:	600mA
Max. power loss:	625mW
Case:	SC89-3
Manufacturer:	Fairchild
Max. drain-source voltage:	20V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	12V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
