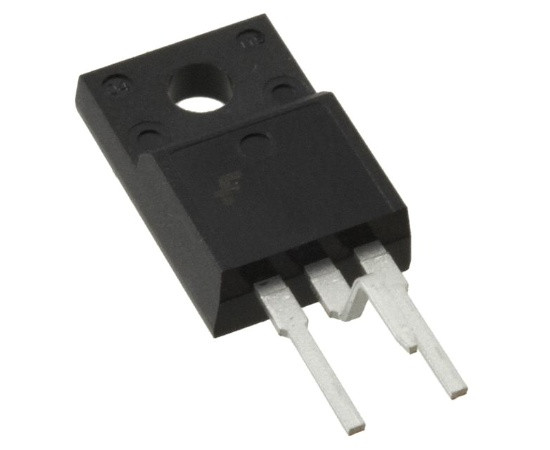

FQPF47P06-YDTU TO220-FORMED LEADS

Symbol Micros: TFQPF47p06ydtu

113925

TFQPF47p06ydtu

Contractor Symbol:

Case : TO220/3Q iso

Datasheet

Add to favourites

P-MOSFET 60V 30A 62W

Parameters

Open channel resistance:	26mOhm
Max. drain current:	30A
Max. power loss:	62W
Case:	TO220/3Q iso
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	60V
Transistor type:	P-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	26mOhm
Max. drain current:	30A
Max. power loss:	62W
Case:	TO220/3Q iso
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	60V
Transistor type:	P-MOSFET
Max. gate-source Voltage:	25V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	THT
