IPD034N06N3G Infineon

Symbol Micros: TIPD034n06n3g

118139

TIPD034n06n3g

Contractor Symbol:

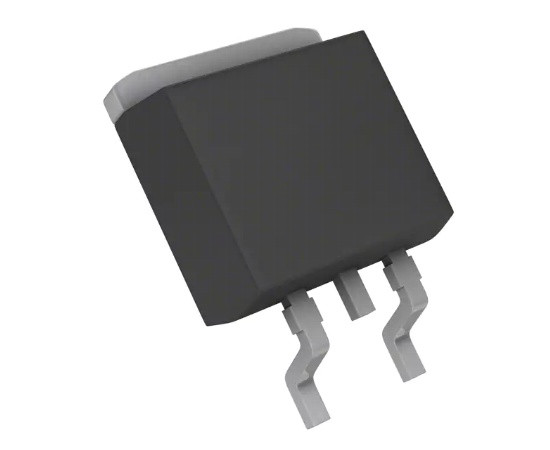

Case : TO252/3 (DPAK)

Datasheet

Add to favourites

N-MOSFET 60V 100A 3.4mΩ 167W

Parameters

Open channel resistance:	3,4mOhm
Max. drain current:	100A
Max. power loss:	167W
Case:	TO252/3 (DPAK)
Manufacturer:	Infineon Technologies
Max. drain-source voltage:	60V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	3,4mOhm
Max. drain current:	100A
Max. power loss:	167W
Case:	TO252/3 (DPAK)
Manufacturer:	Infineon Technologies
Max. drain-source voltage:	60V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
