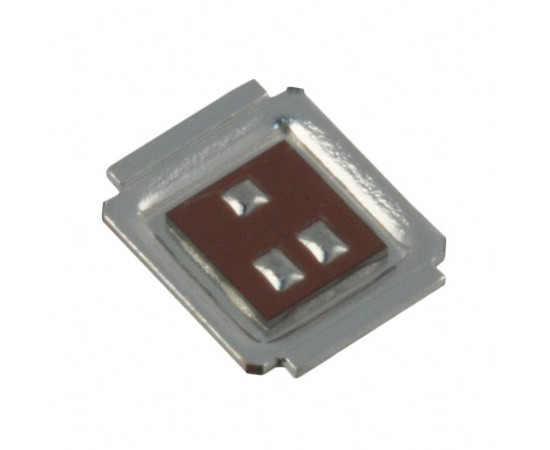

IRF7580MTRPBF

Symbol Micros: TIRF7580m

170051

TIRF7580m

Contractor Symbol:

Case : DirectFET

Datasheet

Technical drawing Add to favourites

Trans MOSFET N-CH 60V 114A 10-Pin Direct-FET ME

Parameters

Open channel resistance:	3,5mOhm
Max. drain current:	114A
Max. power loss:	96W
Case:	DirectFET
Manufacturer:	INFINEON
Max. drain-source voltage:	60V
Max. gate-source Voltage:	20V

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	3,5mOhm
Max. drain current:	114A
Max. power loss:	96W
Case:	DirectFET
Manufacturer:	INFINEON
Max. drain-source voltage:	60V
Max. gate-source Voltage:	20V
Transistor type:	N-MOSFET
Operating temperature (range):	-55°C ~ 150°C
