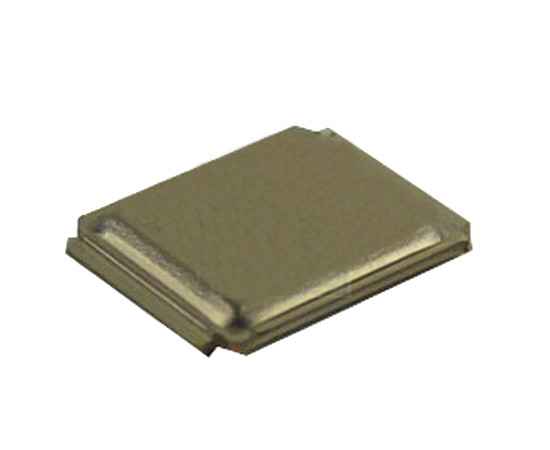

IRF7749L1 Infineon

Symbol Micros: TIRF7749L1

106451

TIRF7749L1

Contractor Symbol:

Case : DirectFET

Datasheet

Technical drawing Add to favourites

N-MOSFET 60V 1.5mΩ 33A 3.3W

Parameters

Open channel resistance:	1,5mOhm
Max. drain current:	33A
Max. power loss:	3,3W
Case:	DirectFET
Manufacturer:	International Rectifier
Max. drain-source voltage:	60V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	1,5mOhm
Max. drain current:	33A
Max. power loss:	3,3W
Case:	DirectFET
Manufacturer:	International Rectifier
Max. drain-source voltage:	60V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
