IRFH3707TRPBF International Rectifier

Symbol Micros: TIRFH3707

95957

TIRFH3707

Contractor Symbol:

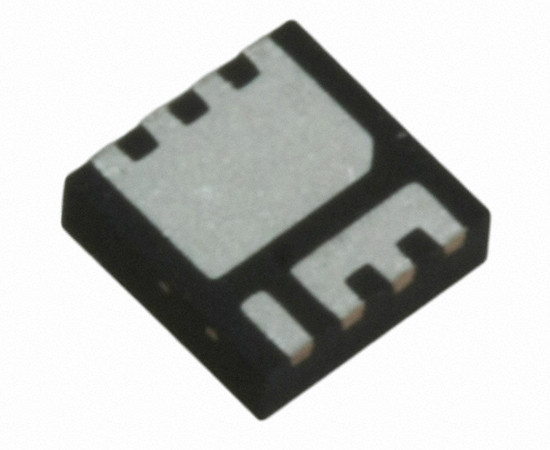

Case : PQFN56 (5x6mm)

Datasheet

Add to favourites

N-MOSFET 30V 12A 2.8W 12.4mΩ

Parameters

Open channel resistance:	17,9mOhm
Max. drain current:	12A
Max. power loss:	2,8W
Case:	PQFN56 (5x6mm)
Manufacturer:	International Rectifier
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	17,9mOhm
Max. drain current:	12A
Max. power loss:	2,8W
Case:	PQFN56 (5x6mm)
Manufacturer:	International Rectifier
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
