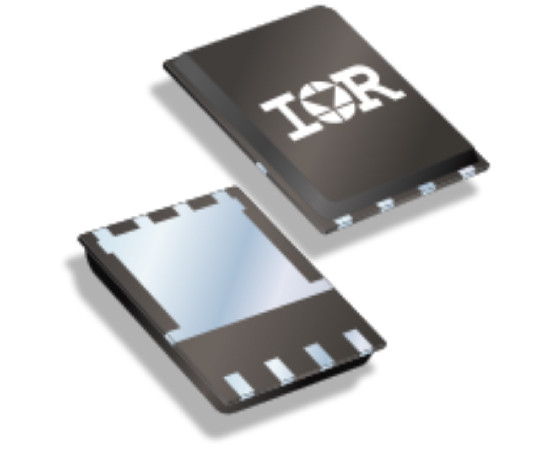

IRFH708TRPBF International Rectifier

Symbol Micros: TIRFH7085

104688

TIRFH7085

Contractor Symbol:

Case : PQFN6

Datasheet

Add to favourites

N-MOSFET 60V 100A 3.2mΩ

Parameters

Open channel resistance:	3,6mOhm
Max. drain current:	147A
Max. power loss:	156W
Case:	PQFN6
Manufacturer:	Infineon (IRF)
Max. drain-source voltage:	60V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: International Rectifier Manufacturer part number: IRFH7085TR RoHS Case style: PQFN6 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,5236	1,1315	0,9883	0,9179	0,8968

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: Infineon Manufacturer part number: IRFH7085TRPBF Case style: PQFN6

External warehouse:

8000 pcs.

Quantity of pcs.	4000+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,8968

Add to comparison tool Add inquiry (RFQ)

Packaging:
4000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Open channel resistance:	3,6mOhm
Max. drain current:	147A
Max. power loss:	156W
Case:	PQFN6
Manufacturer:	Infineon (IRF)
Max. drain-source voltage:	60V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
