IRFH8325TRPBF

Symbol Micros: TIRFH8325

123839

TIRFH8325

Contractor Symbol:

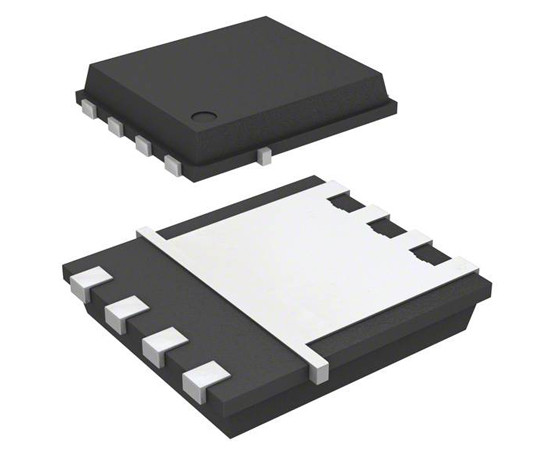

Case : QFN-08

Datasheet

Add to favourites

Trans MOSFET N-CH 30V 21A

Parameters

Open channel resistance:	5mOhm
Max. drain current:	21A
Max. power loss:	3,6W
Case:	PQFN08 (6x5mm)
Manufacturer:	International Rectifier
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	5mOhm
Max. drain current:	21A
Max. power loss:	3,6W
Case:	PQFN08 (6x5mm)
Manufacturer:	International Rectifier
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
