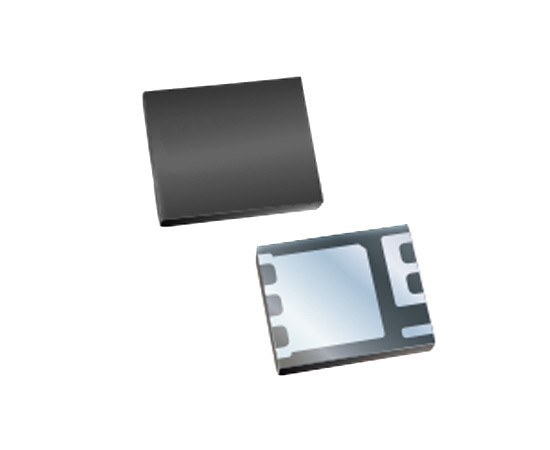

IRFHM9331 Infineon

Symbol Micros: TIRFHM9331

108517

TIRFHM9331

Contractor Symbol:

Case : PQFN08 (6x5mm)

Datasheet

Add to favourites

P-MOSFET 30V 14,6mΩ 2.8W IRFM9331TRPBF

Parameters

Open channel resistance:	10mOhm
Max. drain current:	11A
Max. power loss:	2,8W
Case:	PQFN08 (6x5mm)
Manufacturer:	Infineon (IRF)
Max. drain-source voltage:	30V
Transistor type:	P-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	10mOhm
Max. drain current:	11A
Max. power loss:	2,8W
Case:	PQFN08 (6x5mm)
Manufacturer:	Infineon (IRF)
Max. drain-source voltage:	30V
Transistor type:	P-MOSFET
Max. gate-source Voltage:	25V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
