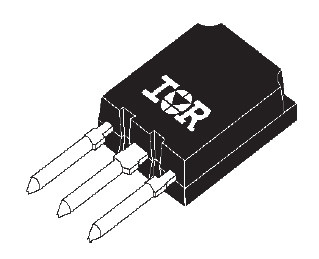

IRFPS37N50A SUPER247

Symbol Micros: TIRFPS37n50a

43301

TIRFPS37n50a

Contractor Symbol:

Case : SUPER-247

Datasheet

Technical drawing Add to favourites

N-MOSFET 36A 500V 446W 0.13Ω

Parameters

Open channel resistance:	130mOhm
Max. drain current:	36A
Max. power loss:	446W
Case:	SUPER-247
Manufacturer:	VISHAY
Max. drain-source voltage:	500V
Transistor type:	N-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	130mOhm
Max. drain current:	36A
Max. power loss:	446W
Case:	SUPER-247
Manufacturer:	VISHAY
Max. drain-source voltage:	500V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	30V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	THT
