IRG4BH20K-LPBF

Symbol Micros: TIRG4bh20k-L

123588

TIRG4bh20k-L

Contractor Symbol:

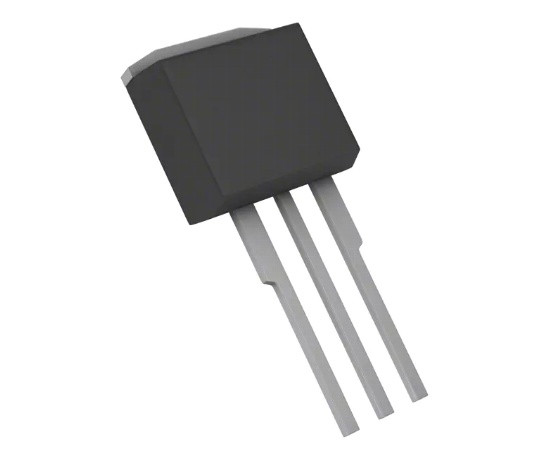

Case : TO262

Datasheet

Technical drawing Add to favourites

Trans IGBT Chip N-CH 1200V 11A 60000mW

Parameters

Gate charge:	43nC
Max. dissipated power:	60W
Max collector current (impulse):	22A
Max. collector current:	11A
Forvard volatge [Vgeth]:	3,5V ~ 6,5V
Case:	TO262
Manufacturer:	International Rectifier

All parameters

Manufacturer:: Infineon Manufacturer part number: IRG4BH20K-LPBF Case style: TO262

In stock:

1 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	1,7794	1,4103	1,1988	1,1024	1,0460

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

• Parameters

Gate charge:	43nC
Max. dissipated power:	60W
Max collector current (impulse):	22A
Max. collector current:	11A
Forvard volatge [Vgeth]:	3,5V ~ 6,5V
Case:	TO262
Manufacturer:	International Rectifier
Operating temperature (range):	-55°C ~ 150°C
Collector-emitter voltage:	1200V
Gate-emitter voltage:	20V
Mounting:	THT
