IRG4PH50U

Symbol Micros: TIRG4ph50u

26376

TIRG4ph50u

Contractor Symbol:

Case : TO247AC

Datasheet

Technical drawing Add to favourites

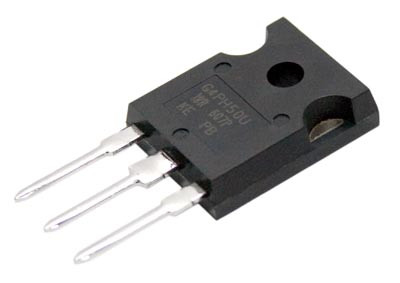

45A; 1200V; 200W; IGBT

Parameters

Gate charge:	250nC
Max. dissipated power:	200W
Max collector current (impulse):	180A
Max. collector current:	45A
Forvard volatge [Vgeth]:	3,0V ~ 6,0V
Case:	TO247AC
Manufacturer:	International Rectifier

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Gate charge:	250nC
Max. dissipated power:	200W
Max collector current (impulse):	180A
Max. collector current:	45A
Forvard volatge [Vgeth]:	3,0V ~ 6,0V
Case:	TO247AC
Manufacturer:	International Rectifier
Operating temperature (range):	-55°C ~ 150°C
Collector-emitter voltage:	1200V
Gate-emitter voltage:	20V
