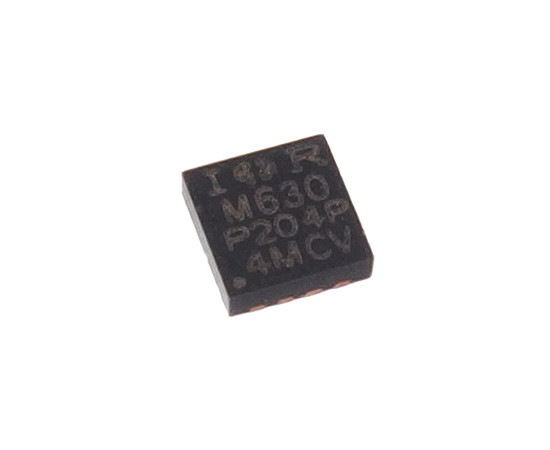

IRLHM630TRPBF

Symbol Micros: TIRLHM630

86103

TIRLHM630

Contractor Symbol:

Case : PQFN33

Datasheet

Add to favourites

N-MOSFET 30V 21A 2.7W

Parameters

Open channel resistance:	4,5mOhm
Max. drain current:	21A
Max. power loss:	2,7W
Case:	PQFN33
Manufacturer:	Infineon (IRF)
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET

All parameters

Manufacturer:: International Rectifier Manufacturer part number: IRLHM630TR RoHS Case style: PQFN33 Datasheet

In stock:

44 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,9416	1,5490	1,3257	1,1917	1,1424

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Open channel resistance:	4,5mOhm
Max. drain current:	21A
Max. power loss:	2,7W
Case:	PQFN33
Manufacturer:	Infineon (IRF)
Max. drain-source voltage:	30V
Transistor type:	N-MOSFET
Max. gate-source Voltage:	12V
Operating temperature (range):	-55°C ~ 150°C
Mounting:	SMD
