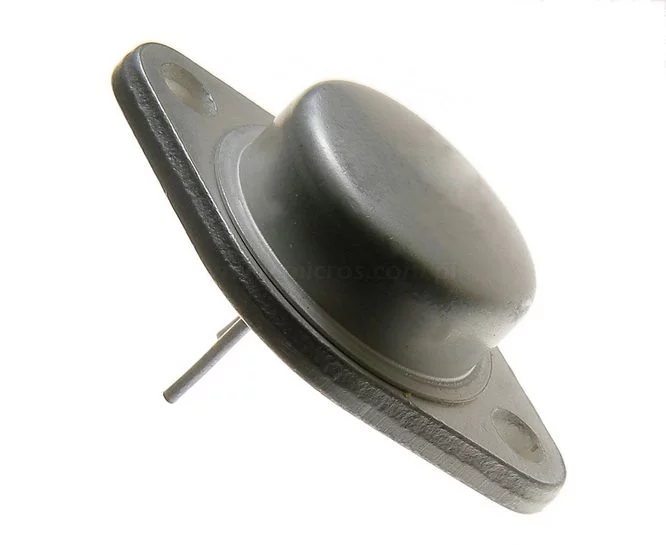

MJ15016

Symbol Micros: TMJ15016

21569

TMJ15016

Contractor Symbol:

Case : TO 3

Datasheet

Technical drawing Add to favourites

PNP 15A 120V 180W 18MHz Replacement: MJ15025

Parameters

Power dissipation:	180W
Current gain factor:	70
Case:	TO 3
Cutoff frequency:	18MHz
Max. collector current:	15A
Max collector-emmiter voltage:	120V
Operating temperature (range):	-65°C ~ 200°C

All parameters

Manufacturer:: CYD Manufacturer part number: MJ15016 RoHS Case style: TO 3

In stock:

180 pcs.

Quantity of pcs.	2+	10+	50+	250+	1000+
Net price (EUR)	0,7776	0,4916	0,3876	0,3498	0,3380

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/250/1000 Quantity (multiple: 1)

- +

• Parameters

Power dissipation:	180W
Current gain factor:	70
Case:	TO 3
Cutoff frequency:	18MHz
Max. collector current:	15A
Max collector-emmiter voltage:	120V
Operating temperature (range):	-65°C ~ 200°C
Transistor type:	PNP
