NVMFWS014P04M8LT1G

Symbol Micros: TNVMFWS014P04M8LT1G

380849

TNVMFWS014P04M8LT1G

Contractor Symbol:

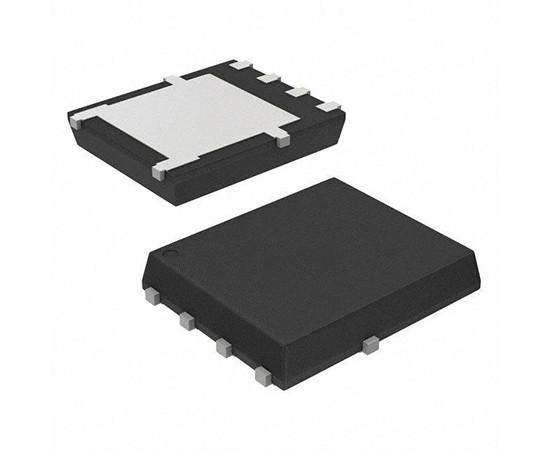

Case : DFN5

Datasheet

Add to favourites

P-Channel 40 V 12.5A (Ta), 52.1A (Tc) 3.6W (Ta), 60W (Tc) Surface Mount 5-DFN (5

Parameters

Open channel resistance:	19,7mOhm
Max. drain current:	12,5A
Max. power loss:	3,6W
Case:	DFN5
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	40V
Transistor type:	P-MOSFET

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Open channel resistance:	19,7mOhm
Max. drain current:	12,5A
Max. power loss:	3,6W
Case:	DFN5
Manufacturer:	ON SEMICONDUCTOR
Max. drain-source voltage:	40V
Transistor type:	P-MOSFET
Max. gate-source Voltage:	20V
Operating temperature (range):	-55°C ~ 175°C
Mounting:	SMD
