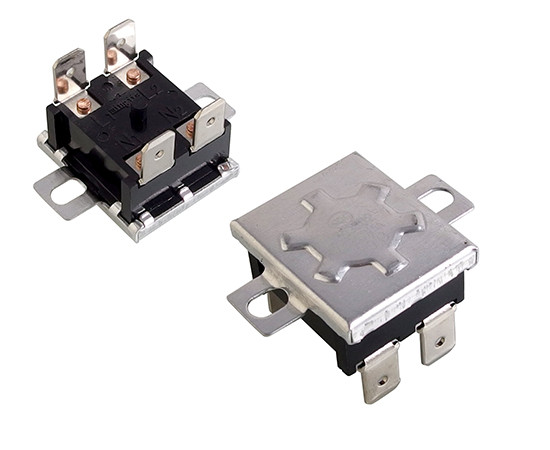

Bimetallic thermostat; 70°C

Symbol Micros: TO KSD302-070 insert-pin

111067

TO KSD302-070 insert-pin

Contractor Symbol:

Case : Rys.KSD302 insert-pin

Datasheet

Technical drawing Add to favourites

Normal closed; 70°C; 250VAC; 15A; with manual reset; insert - pin; vertical connectors

Parameters

Switching temperature:	70°C
Leads:	Vertical connectors
Current:	15A
Manufacturer:	N/A
Case:	N/A
Operating voltage:	250V
Output configuration:	NC

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Switching temperature:	70°C
Leads:	Vertical connectors
Current:	15A
Manufacturer:	N/A
Case:	N/A
Operating voltage:	250V
Output configuration:	NC
