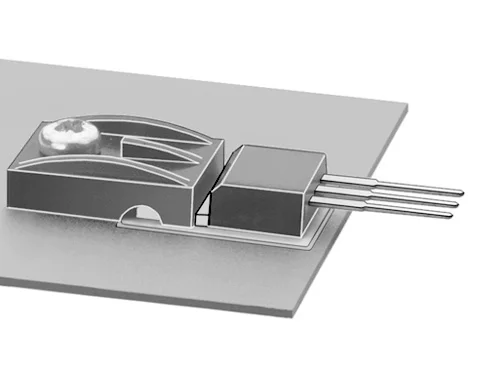

ISP220V Insulating Clamping Parts for Power Transistors TO220

Symbol Micros: TPISP220V

96225

TPISP220V

Contractor Symbol:

Case : Rys.TPISP220V

Datasheet

Technical drawing Add to favourites

Dimensions: 17.7 x 12.1mm Φ4.6 x 5,6mm; 205°C(1,8MPa); 135°C(8MPa); Fischer Elektronik

Parameters

Dimensions:	17,7 x 12,1mm
Thickness [m]:	5,6mm
Diameter [m]:	4,6mm
Usage:	TO220
Parameters:	Mounting clip for transistors
Heatsink pad type (material):	Polyamide

All parameters

Manufacturer:: Fischer Manufacturer part number: ISP 220V RoHS Case style: Rys.TPISP220V Datasheet

In stock:

590 pcs.

Quantity of pcs.	2+	10+	50+	200+	700+
Net price (EUR)	0,8912	0,5634	0,4433	0,4041	0,3879

Add to comparison tool Add inquiry (RFQ)

Packaging:
700 Quantity (multiple: 1)

- +

Manufacturer:: Fischer Manufacturer part number: ISP 220 V Case style: Rys.TPISP220V

External warehouse:

9654 pcs.

Quantity of pcs.	300+ (Please wait for the order confirmation)
Net price (EUR)	0,4263

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Dimensions:	17,7 x 12,1mm
Thickness [m]:	5,6mm
Diameter [m]:	4,6mm
Usage:	TO220
Parameters:	Mounting clip for transistors
Heatsink pad type (material):	Polyamide
