PUMH11-QX

Symbol Micros: TPUMH11-QX

528558

TPUMH11-QX

Contractor Symbol:

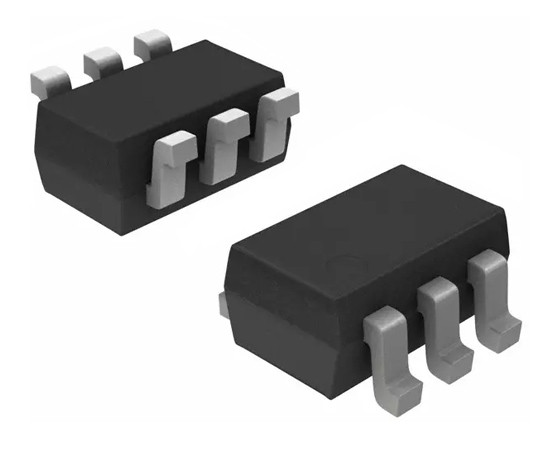

Case : SOT363 t/r

Datasheet

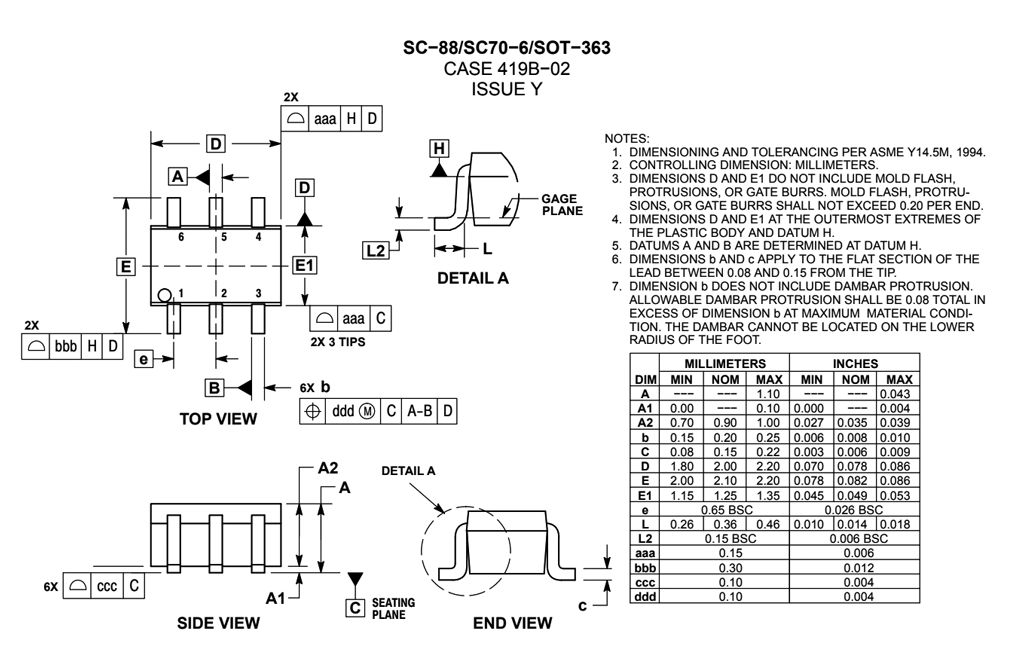

Technical drawing Add to favourites

Trans Digital BJT NPN 50V 100mA 200mW Automotive AEC-Q101 6-Pin TSSOP T/R Substitute: PUMH11-QF; PUMH11-QX;

Parameters

Power dissipation:	200mW
Manufacturer:	NXP
Current gain factor:	30
Case:	SOT363
Cutoff frequency:	230MHz
Max. collector current:	100mA
Max collector-emmiter voltage:	50V

All parameters

Manufacturer:: Nexperia Manufacturer part number: PUMH11-QX Case style: SOT363 t/r

External warehouse:

120000 pcs.

Quantity of pcs.	18000+ (Please wait for the order confirmation)
Net price (EUR)	0,0213

Add inquiry (RFQ)

Packaging:
3000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Power dissipation:	200mW
Manufacturer:	NXP
Current gain factor:	30
Case:	SOT363
Cutoff frequency:	230MHz
Max. collector current:	100mA
Max collector-emmiter voltage:	50V
Operating temperature (range):	-65°C ~ 150°C
Transistor type:	2xNPN
